SKU:140490
LED Strip RGB Amplifier 216W #140490
Regular price
$0.00 USD
Sale price
$0.00 USD
Regular price
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 2 units left
Couldn't load pickup availability

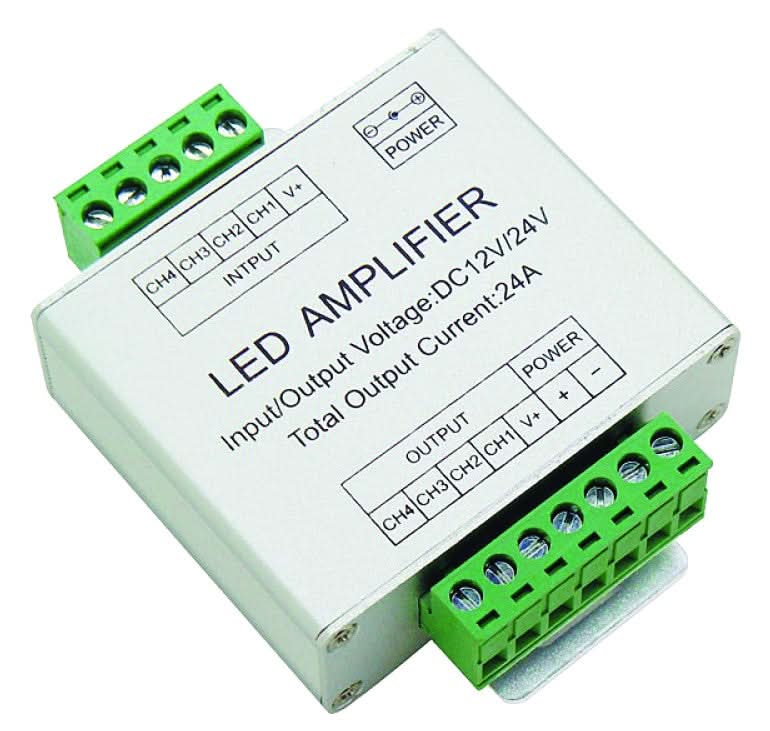

The 140490 LED Strip RGB Amplifier is a signal repeater used to extend the length or quantity of RGB LED strips controlled by a single master controller. It works by receiving the PWM (Pulse Width Modulation) signal from the existing controller and "amplifying" it using a secondary power source to prevent voltage drop and ensure synchronized lighting across long runs.
| Feature | Specification |
|---|---|
| Product Code | 140490 |
| Function | RGB Signal Amplifier / Repeater |
| Input/Output Voltage | 12V – 24V DC |
| Max Power Output | 108W (at 12V) / 216W (at 24V) |
| Max Current | 18A Total (6A per channel x 3) |
| Connection Type | Common Anode (+) |
| Signal Input | PWM (from RGB Controller or previous strip) |
| Material | Aluminum Housing (for heat dissipation) |
| Dimensions | Typically ~95 x 65 x 24 mm |
